VOC Scrubber

Product Description

VOC Scrubber are used for the removal of volatile organic compounds that are emitted from the industrial processes such as oil, diesel and gas industries, refineries, etc. Volatile organic compounds or VOC’s are the components that easily become vapors or gases. They contain elements such as carbon, hydrogen, oxygen, fluorine, sulfur, nitrogen, bromine etc. Mostly Volatile components are gasoline, benzene, formaldehyde, xylene, styrene, perchloroethylene, tetrachloroethylene etc.

Working:

There are many factors that must be considered while designing the VOC Scrubber such as gas stream loading, regulatory requirements etc.  Apzem’s VOC scrubber has high VOC removal efficiency. This wet VOC Scrubber is most suitable for applications that involves in the emission of VOC’s that are soluble. Apzem’s VOC scrubber is constructed with corrosion and temperature resistant construction material. This scrubber works with 99.99% voc removal efficiency. Moreover it is capable of removing oil, mist and solid particles.

Technical Specification

  • Air Flow: upto 70,000 CFM
  • Efficiency : upto 99.99% capturing efficiency
  • MOC: Mild Steel / SS 304 / SS316 / FRP / PP / PVC
  • Finish: Powder coated / Matt finish
  • Power option : 3 Phase.
  • Customization : Yes , customization available suiting your needs.

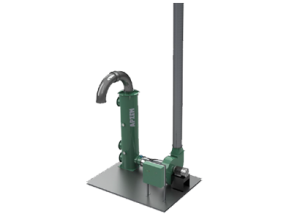

voc-scrubber


View Brochure

Contaminants Removed

  • H2S , HCl , HF , HBr
  • HCN ,HNO3 , NH3
  • Formic acid , Chromic acid
  • SO2 , Cl2, F2, Br2 , BCl3, BF3
  • Formaldehyde , Ethylene compounds
  • Soluble alcohols, acids
  • VOCs And many others

Advantage

  • Landfill and Biogas Contaminants
  • Acid Fumes and gases
  • Chemical Fumes and Odor
  • Food Processing Odors
  • Metal Finishing Fumes
  • Steel Processing Fumes
  • Wastewater treatment plant odors

Applications

  • Can sustain highly corrosive atmosphere.
  • Relatively low pressure drop.
  • High mass transfer efficiency.
  • Require relatively small space.

Other Technical Details

Customization Factors
Accessories
Others
Customization Factors

  • Contaminant solubility
  • Vapor pressures
  • Wash liquid flow rate
  • Liquid to gas ratio
  • Packing chamber height, diameter, and volume
  • Packing media type and size
  • Chemical additives
  • pH control
  • Precipitation of reaction products
  • Multiple solution scrubbing
  • Required scrubbing stages
  • Pressure drop across packing
  • Materials of construction
  • Site requirements

Accessories

  • Centrifugal Blower,
  • Spiral Ducts,
  • Flexible duct,
  • Suction hoods,
  • Magnahelic gauge,
  • Packings
  • PH meter
  • Water Level indicator & controller
  • Pump etc..

Others

Certification : All Apzem Products are designed to comply with ACGIH and OSHA standards as well as local PCB Standards.

Warranty : All Apzem Products are minimum one year waranted for performance and quality.
