Orifice scrubbers are also known as entrainment or self-induced spray scrubbers. Orifice Scrubber is an industrial air scrubbing system that is used to purify the dust laden air that are emitted during the industrial processes. This Orifice scrubber is a wet scrubbing system and is suitable for air pollution control and emission control.

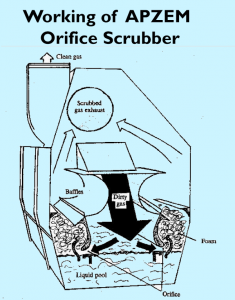

It forces the dust laden air to pass over the surface of scrubbing liquid while it enters an orifice. Because of high velocity of this scrubber the liquid from the pool gets en-trained as droplets in the gas stream. With the increase in velocity & turbulence, the interaction between the liquid droplets and the particulate matter also increases. These particulate matter and the droplets are then removed from the gas stream.
- Air Flow: upto 70,000 CFM
- Efficiency : upto 99.99% capturing efficiency
- MOC: Mild Steel / SS 304 / SS316 / FRP / PP / PVC
- Finish: Powder coated / Matt finish
- Power option : 3 Phase.
- Customization : Yes , customization available suiting your needs.
- H2S , HCl , HF , HBr
- HCN ,HNO3 , NH3
- Formic acid , Chromic acid
- SO2 , Cl2, F2, Br2 , BCl3, BF3
- Formaldehyde , Ethylene compounds
- Soluble alcohols, acids
- VOCs And many others
- Landfill and Biogas Contaminants
- Acid Fumes and gases
- Chemical Fumes and Odor
- Food Processing Odors
- Metal Finishing Fumes
- Steel Processing Fumes
- Wastewater treatment plant odors
- Can sustain highly corrosive atmosphere.
- Relatively low pressure drop.
- High mass transfer efficiency.
- Require relatively small space.
Other Technical Details
- Contaminant solubility
- Vapor pressures
- Wash liquid flow rate
- Liquid to gas ratio
- Packing chamber height, diameter, and volume
- Packing media type and size
- Chemical additives
- pH control
- Precipitation of reaction products
- Multiple solution scrubbing
- Required scrubbing stages
- Pressure drop across packing
- Materials of construction
- Site requirements
- Centrifugal Blower,
- Spiral Ducts,
- Flexible duct,
- Suction hoods,
- Magnahelic gauge,
- PH meter
- Water Level indicator & controller
- Pump etc..
Certification : All Apzem Products are designed to comply with ACGIH and OSHA standards as well as local PCB Standards.
Warranty : All Apzem Products are minimum one year waranted for performance and quality.
