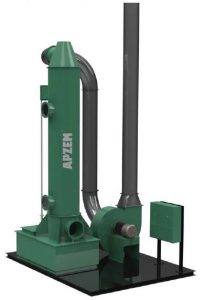

Hydrochloric Acid Scrubber

Product Description

Hydrogen Chloride scrubber is a wet type scrubber that is used for the removal of hydrochloric acid. Hydrogen chloride is a pungent gas which is colorless and corrosive. Though it is not flammable it is toxic. Hence it must be removed from industrial processes that involves in the emission of hydrochloric acid as a resultant product.

Working:

When dissolving HCl gas in water Hydrochloric acid is produced. Recycled water can be used in HCl scrubbers. Usually the waste water stream contains a week Hydrochloric acid solution. It can be more efficiently scrubbed using an alkaline solution. Mostly Sodium Hydroxide is used . Sodium chloride is produced as byproduct.



Technical Specification

  • Air Flow: upto 70,000 CFM
  • Efficiency : upto 99.99% capturing efficiency
  • MOC: Mild Steel / SS 304 / SS316 / FRP / PP / PVC
  • Finish: Powder coated / Matt finish
  • Power option : 3 Phase.
  • Customization : Yes , customization available suiting your needs.

Hydrochloric Acid Scrubber

View Brochure

Contaminants Removed

  • H2S , HCl , HF , HBr
  • HCN ,HNO3 , NH3
  • Formic acid , Chromic acid
  • SO2 , Cl2, F2, Br2 , BCl3, BF3
  • Formaldehyde , Ethylene compounds
  • Soluble alcohols, acids
  • VOCs And many others

Advantage

  • Landfill and Biogas Contaminants
  • Acid Fumes and gases
  • Chemical Fumes and Odor
  • Food Processing Odors
  • Metal Finishing Fumes
  • Steel Processing Fumes
  • Wastewater treatment plant odors

Applications

  • Can sustain highly corrosive atmosphere.
  • Relatively low pressure drop.
  • High mass transfer efficiency.
  • Require relatively small space.

Other Technical Details

Customization Factors
Accessories
Others
Customization Factors

  • Contaminant solubility
  • Vapor pressures
  • Wash liquid flow rate
  • Liquid to gas ratio
  • Packing chamber height, diameter, and volume
  • Packing media type and size
  • Chemical additives
  • pH control
  • Precipitation of reaction products
  • Multiple solution scrubbing
  • Required scrubbing stages
  • Pressure drop across packing
  • Materials of construction
  • Site requirements

Accessories

  • Centrifugal Blower,
  • Spiral Ducts,
  • Flexible duct,
  • Suction hoods,
  • Magnahelic gauge,
  • Packings
  • PH meter
  • Water Level indicator & controller
  • Pump etc..

Others

Certification : All Apzem Products are designed to comply with ACGIH and OSHA standards as well as local PCB Standards.

Warranty : All Apzem Products are minimum one year waranted for performance and quality.
