FGD Scrubber

Product Description

Apzem’s FGD Scrubber can be used for the removal of SO2, HCl, SO3or HF emitted from any industrial processes. FGD Wet Scrubbing system uses water and suitable chemical as scrubbing media.

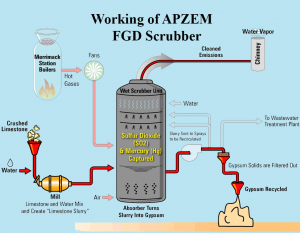

Working:

The flue gas that must be treated is made to enter the absorber. It travels up through the absorption zone. It contacts the absorbent slurry while travelling upward. The gas that is scrubbed continues to pass through mist eliminator.  This mist eliminator traps the en-trained drops before it exists the scrubber. The solution that is used for scrubbing is passed through a recycle tank.

Technical Specification

  • Air Flow: upto 70,000 CFM
  • Efficiency : upto 99.99% capturing efficiency
  • MOC: Mild Steel / SS 304 / SS316 / FRP / PP / PVC
  • Finish: Powder coated / Matt finish
  • Power option : 3 Phase.
  • Customization : Yes , customization available suiting your needs.

FGD Scrubber


View Brochure

Contaminants Removed

  • H2S , HCl , HF , HBr
  • HCN ,HNO3 , NH3
  • Formic acid , Chromic acid
  • SO2 , Cl2, F2, Br2 , BCl3, BF3
  • Formaldehyde , Ethylene compounds
  • Soluble alcohols, acids
  • VOCs And many others

Applications

  • Landfill and Biogas Contaminants
  • Acid Fumes and gases
  • Chemical Fumes and Odor
  • Food Processing Odors
  • Metal Finishing Fumes
  • Steel Processing Fumes
  • Wastewater treatment plant odors

Features

  • Can handle even very high temperature flue gases.
  • Uses very less level of water.
  • High quality, Better operational experience and economical.
  • Efficient separation & disposal of solid waste.

Other Technical Details

Customization Factors
Accessories
Others
Customization Factors

  • Contaminant solubility
  • Vapor pressures
  • Wash liquid flow rate
  • Liquid to gas ratio
  • Packing chamber height, diameter, and volume
  • Packing media type and size
  • Chemical additives
  • pH control
  • Precipitation of reaction products
  • Multiple solution scrubbing
  • Required scrubbing stages
  • Pressure drop across packing
  • Materials of construction
  • Site requirements

Accessories

  • Centrifugal Blower,
  • Spiral Ducts,
  • Flexible duct,
  • Suction hoods,
  • Magnahelic gauge,
  • Packings
  • PH meter
  • Water Level indicator & controller
  • Pump etc..

Others

Certification : All Apzem Products are designed to comply with ACGIH and OSHA standards as well as local PCB Standards.

Warranty : All Apzem Products are minimum one year waranted for performance and quality.
