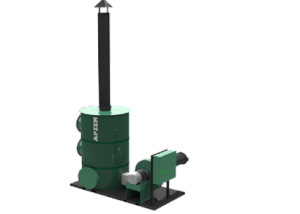

Chlorine Cl2 Scrubber

Product Description

Efficiency is the most important factor when it comes to chlorine scrubber since chlorine gas is highly toxic removal of chlorine gas is a must in industrial processes that involves in the emission of chlorine. Depending on the initial loading of pollutants the wet chlorine scrubbers might require multistage of chlorine removal. Mostly caustic soda or soda ash is used as neutralizing agent.

Chlorine Gas Scrubber Design

Apzem Cl2 Scrubber or Chlorine scrubbing system is designed to capture chlorine gas generated in industrial process leaks, and in municipal waste treatment. Chlorine scrubbing system can be custom designed based on the requirements such as process outlet, the quantity of chlorine to be treated, etc.

Technical Specification

  • Air Flow: upto 70,000 CFM
  • Efficiency : upto 99.99% capturing efficiency
  • MOC: Mild Steel / SS 304 / SS316 / FRP / PP / PVC
  • Finish: Powder coated / Matt finish
  • Power option : 3 Phase.
  • Customization : Yes , customization available suiting your needs.

Chlorine Cl2 Scrubber

View Brochure

Contaminants Removed

  • H2S , HCl , HF , HBr
  • HCN ,HNO3 , NH3
  • Formic acid , Chromic acid
  • SO2 , Cl2, F2, Br2 , BCl3, BF3
  • Formaldehyde , Ethylene compounds
  • Soluble alcohols, acids
  • VOCs And many others

Applied Industries:

  •  Oil and gas extraction operations,
  • Oil refineries,
  • Pulp and paper mills,
  • Sewage treatment plants,
  • Portland cement kilns,
  • Municipal waste landfills,
  • Sulfur products and hydrogen sulfide production,
  • Asphalt production and storage, etc…

Advantage

  • Can sustain highly corrosive atmosphere.
  • Relatively low pressure drop.
  • High mass transfer efficiency.
  • Require relatively small space.

Other Technical Details

Customization Factors
Accessories
Others
Customization Factors

Factors to be considered for customization

  •  The process
  • Amount of chlorine generated
  • Presence of other pollutants and their properties,
  • Temperature,
  • Space availability, and
  • PCB norms at particular zone

Accessories

  • Centrifugal Blower,
  • Spiral Ducts,
  • Flexible duct,
  • Suction hoods,
  • Magnahelic gauge,
  • Packings
  • PH meter
  • Water Level indicator & controller
  • Pump etc..

Others

Certification : All Apzem Products are designed to comply with ACGIH and OSHA standards as well as local PCB Standards.

Warranty : All Apzem Products are minimum one year waranted for performance and quality.
